ET1650F Automatic pre-stretching wrapping machine
Key words:
Pallet Wrapping Machine
Classification:
Product Description
ET series pallet wrapping machine is suitable for the container transportationof bulk goods and the packaging of bulk pallets. Widely used in glassproducts, hardware tools,electronic appliances, papemmaking, ceramicschemicals, food, beverages, building materials and other industries. it canimprove logistics efficiency, reduce losses during transportation, and hasthe advantages of dustproof, moisture proof, and reduced packaging costs.lt is an ideal choice for improving product packaging grades.
| Wrap around specifications | (500-1200) mm & times; (500-1200) mm (l & times; w) |
| Packaging height (MAX) | L type: 2000mm & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; H type: 2400mm & nbsp; & nbsp; Type: 2800mm |
| packaging efficiency | 20-40 native/hour |
| Turn speed | 6-14rpm speed frequency conversion can be adjusted, slowly stop |
| Turning diameter | 1650mm |
| Turning height | 85mm |
| Turn on the platform (MAX) | 2000kg |
| Membrate system | pre -stretching membrane frame, pre -stretching can reach 250 %, automatic film delivery, frequency conversion speed regulation |
| lifting column | dual chain structure, the transition of the lifting speed can be adjusted |
| Control system | PLC control, the number of winding layers, the number of times can be adjusted, the transition is automatically reset, automatic sensing the height of the goods |
| Packaging materials | LLDPE stretch film, thickness (T) 17-35um, width (w) 500mm |
| The whole machine weight (MAX) | 700kg |
| appearance size | 2545mm & times; 1650mm & times; (2310-3110) mm |
| power/voltage | 1.5kW/AC220V |
Models beyond the range can be customized!

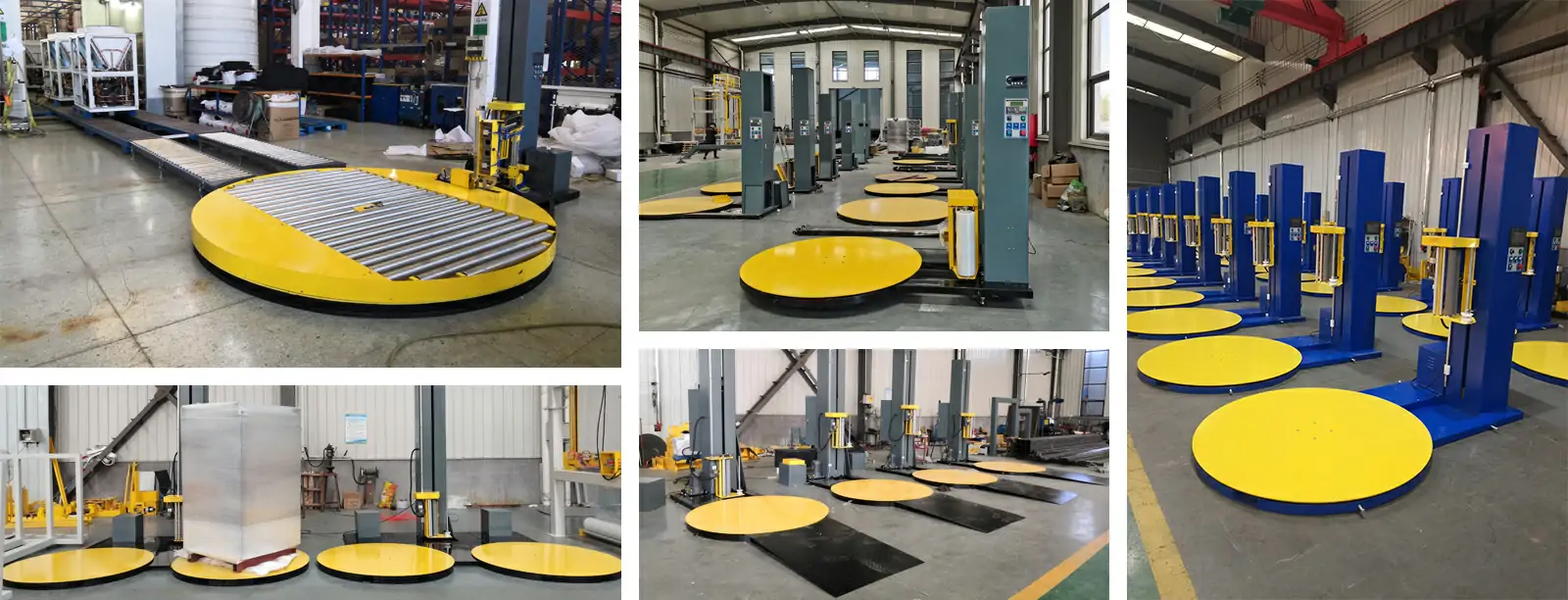

Our Factory
